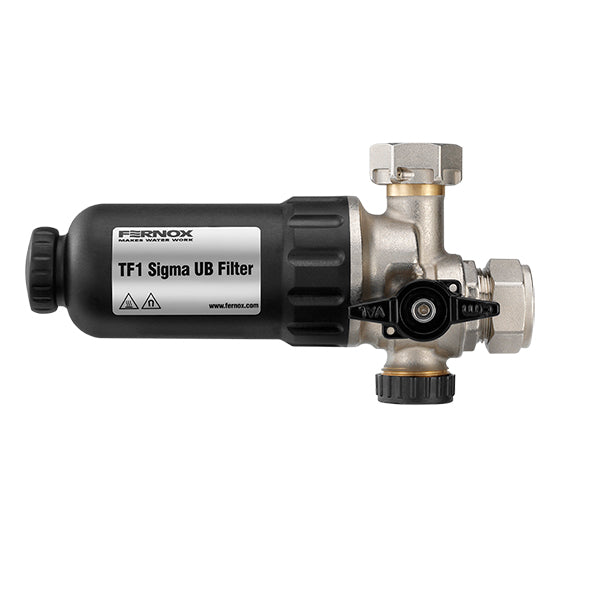

Fernox TF1 Sigma UB Filter

Fernox TF1 Sigma UB Filter

Regular price £44.99 GBP
Regular price Sale price £44.99 GBP
Sale Sold out

Composite under boiler system filter with a brass manifold designed for easy installation in small, restricted areas and with concealed pipework. This high-performance filter can be installed directly under the boiler or in restricted spaces due to the compact, versatile design. The TF1 Sigma UB Filter offers the ultimate in installer choice and provides high efficiency protection against the build-up of system debris.

  • A high capacity, compact design
  • Ideal for use in restricted spaces
  • Integrated three way valve with filter isolation and cleaning functionality
  • Durable and robust construction, made from a high-quality glass reinforced engineering polymer, and non-porous forged brass
  • Will not block or restrict flow
  • Can replace return valve if required

Product Overview

The TF1 Sigma UB Filter body is constructed from a high strength engineering grade polymer, suitable for heating and cooling system applications. The glass reinforced polymer has good hydrolysis resistance, as well as high resistance to strain and abrasion. The polymer is compatible with glycols and additives used in central heating systems. The filter manifold is constructed from a premium grade, non-porous forged brass, allowing for direct connections onto the system, and a simple servicing procedure via the precision engineered manifold.
The TF1 Sigma UB Filter has been designed to ensure there is minimal pressure loss in addition to maintaining a high collection efficiency. The filter has been designed to capture a range of system contaminates, whilst also ensuring it cannot block, reduce flow through pipework or impact the performance of the heating system.
The TF1 Sigma UB Filter utilises a range of high-quality component parts that ensure the filter offers optimum performance. The three-way ball valve has been designed to allow users to easily operate by hand, whilst also providing a reliable serving procedure. The filter manifold includes a secure connection to the system and a robust service point allowing the filter to be drained and cleaned. The magnet is made using premium grade neodymium, enabling a high efficiency capture rate, as well as a robust filtration medium that will ensure a continued and consistent level of collection

Compatible Boilers:
  • Ideal Atlantic
  • Ideal Mini
  • Ideal Esprit
  • Ideal Exclusive
  • Vokera Vibe
  • Vokera Unica
  • Vokera Vision
Compatible Boilers With Adapter:
  • Glowworm Compact
  • Ideal Logic
  • Ideal Logic Plus
  • Ideal Logic ESP1
Not Compatible Boilers:
  • Glowworm Energy
  • Glowworm Ultimate
  • Vaillant ECOfit Pure
  • Vaillant ECOfit Sustain
  • Vaillant ECOtec Pro
  • Vaillant ECOtec Plus
