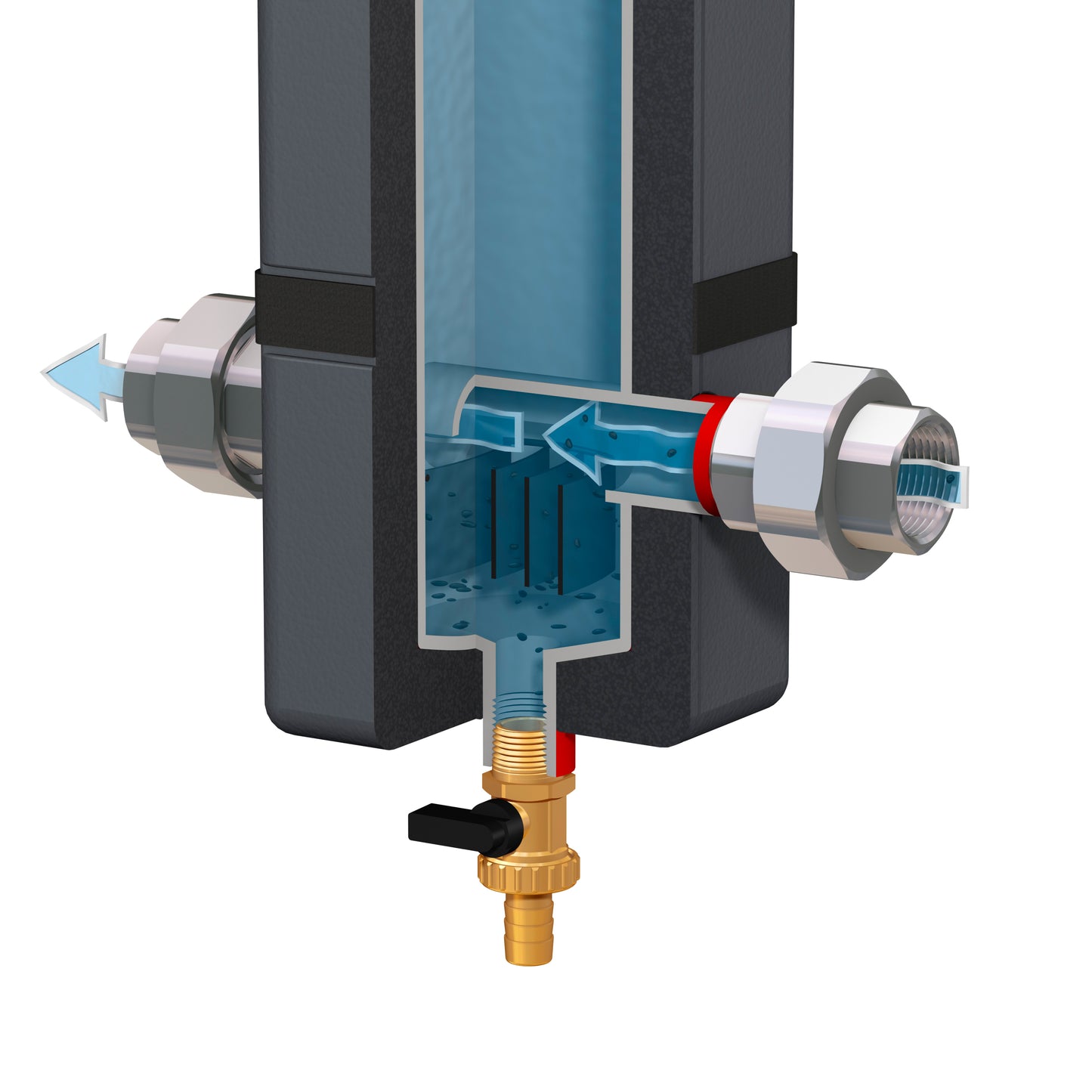

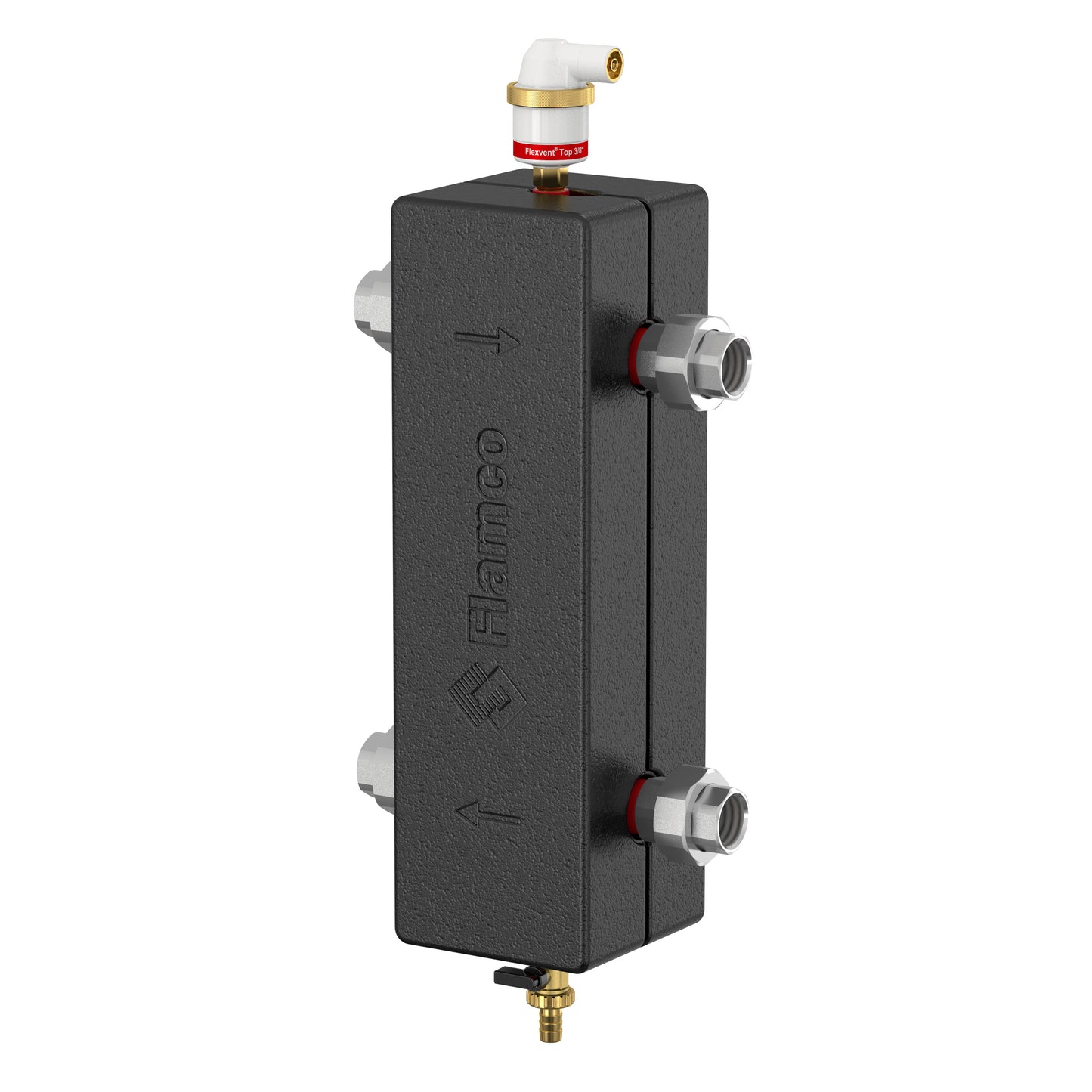

The FlexBalance EcoPlus C allows hydraulic separation between the primary and secondary circuits of commercial heating and cooling systems with air and dirt separation.
No more overloaded pumps.Improved accurate regulation of the system.Considerably improved heat transfer.Higher output by the system.Intergration of air and dirt separation.Compact.Heat transfer level of 99%.Low flow resistance.
Technical Specifications
Working pressure: 0.2 - 10 bar.
Minimum/Maximum working temperature: -10 °C / 110 °C.
Equipped with a Flexvent Top ⅜" white (28510). Equipped with a brass drain valve ½" and hose connection.
Suitable for the addition of glycol-based anti-freeze up to 50%.
Vessel: steel ST 37/2, red-coated RAL 3002.
Insulation: EPPA temperature sensor can be inserted in the sensor connection (G ½") with an immersion pipe.
Inner diameter: 12.5 mm.Coupling (4x) with conical seal, galvanized steel.
