Flamco Flexfiller Direct G4 - 20100

Flamco Flexfiller Direct G4 - 20100

£1,045.84 GBP
£1,045.84 GBP
Sale Sold out

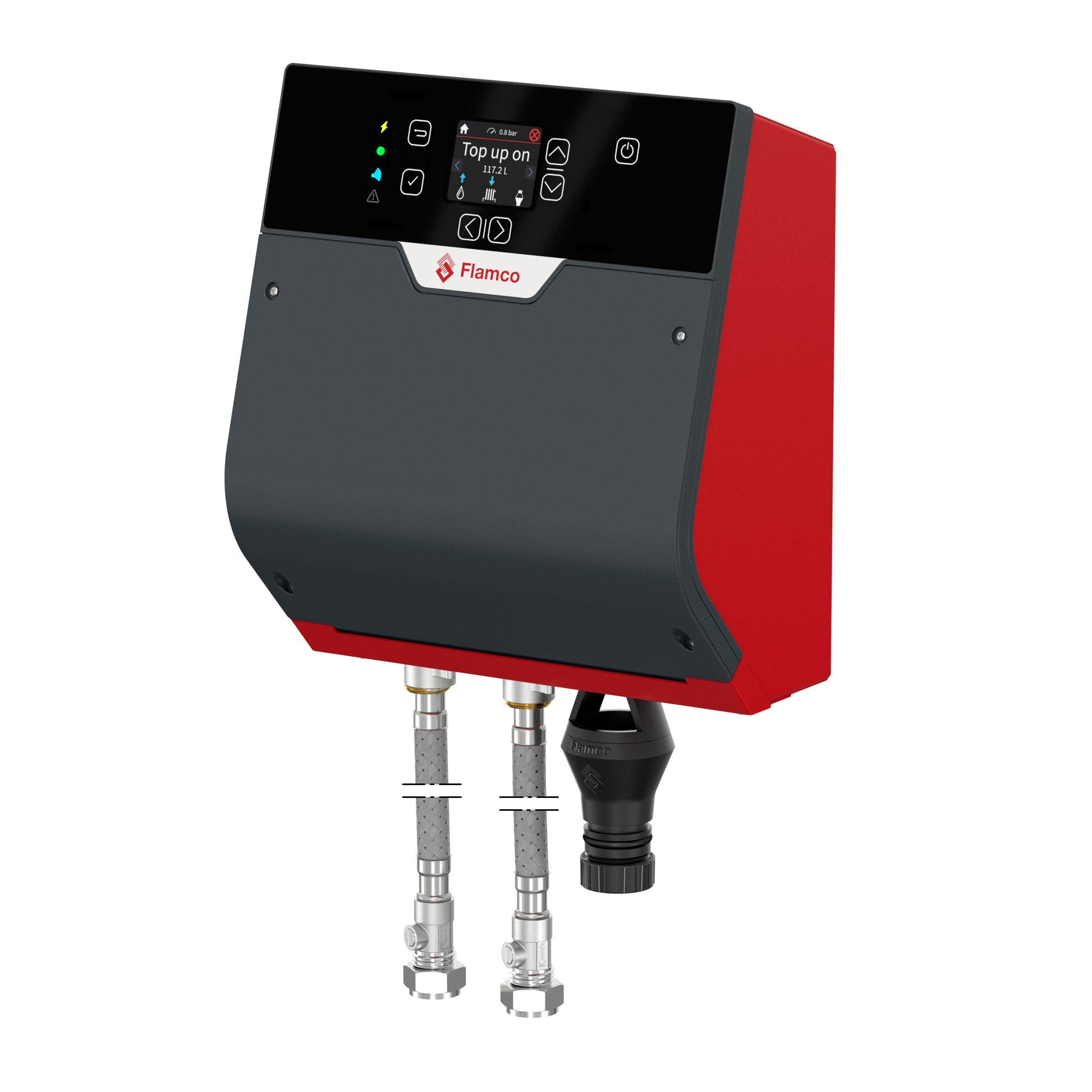

The Flexfiller Direct G4 is the latest in pumpless digital pressurisation technology for light commercial and residential buildings. It’s a slim, wall-mounted pumpless top-up pressurisation unit, with a top-up flow rate of up to 14 l/min depending on the mains or boosted mains, water pressure. It is designed to be connected directly to a building’s incoming water supply using the included flexible hose. It is there to fill and maintain the pressure of a heating or chilled water system without the need for a pump. The unit comes with a user-friendly controller that displays all operating and error conditions comprehensibly and conveniently. It features extensive data storage for online and offline analysis, microprocessor control, and self-learning algorithms with a graphical display. It comes with MODBUS RTU and BACnet communication protocols as standard and has its key operating parameters password protected.

Product features

  • Silent, pumpless pressurisation unit.
  • Fills system from empty.
  • For system volumes up to 50,000 litres.
  • Onscreen service reminder (12 months).
  • Colours: Grey (RAL7016) and Red (RAL3002).
  • Password protected.
  • Pressure setting in 0.1 bar increments.
  • Flood protection (Runtime limiter and excessive activation logging).
  • Volt free contact: Common alarm (N/C or N/O), fully programmable for specific alarms customisable via control unit).
  • Extensive data storage for online or offline analysis.
  • Advanced technology ensures the lowest power consumption, long service life and easy maintenance.
  • Microprocessor control, self-learning with graphical display.
  • Max. flow rate of 14 l/min.
  • Connects directly to the mains (boosted) water mains, via included flexible hose (L = 400 mm).

  • Universal connection to drain fits 22 mm copper compression, 32 mm PP push fit and 32 mm PP solvent weld discharge pipe to BS 5254 or BS EN1451. The user-friendly control unit displays all operating and error conditions in an logical and convenient way. Four status LED indicators. System safety valve monitoring. Expansion vessel health monitoring. Leak detection. Usage monitor, logs and counters. MODBUS RTU and BACnet Communication Protocol via RS485. Can be combined with Flamconnect Remote (Please check with your local sales office for availability). Two 40 cm flexible hoses (for mains and sealed system connection) included for easy installation.

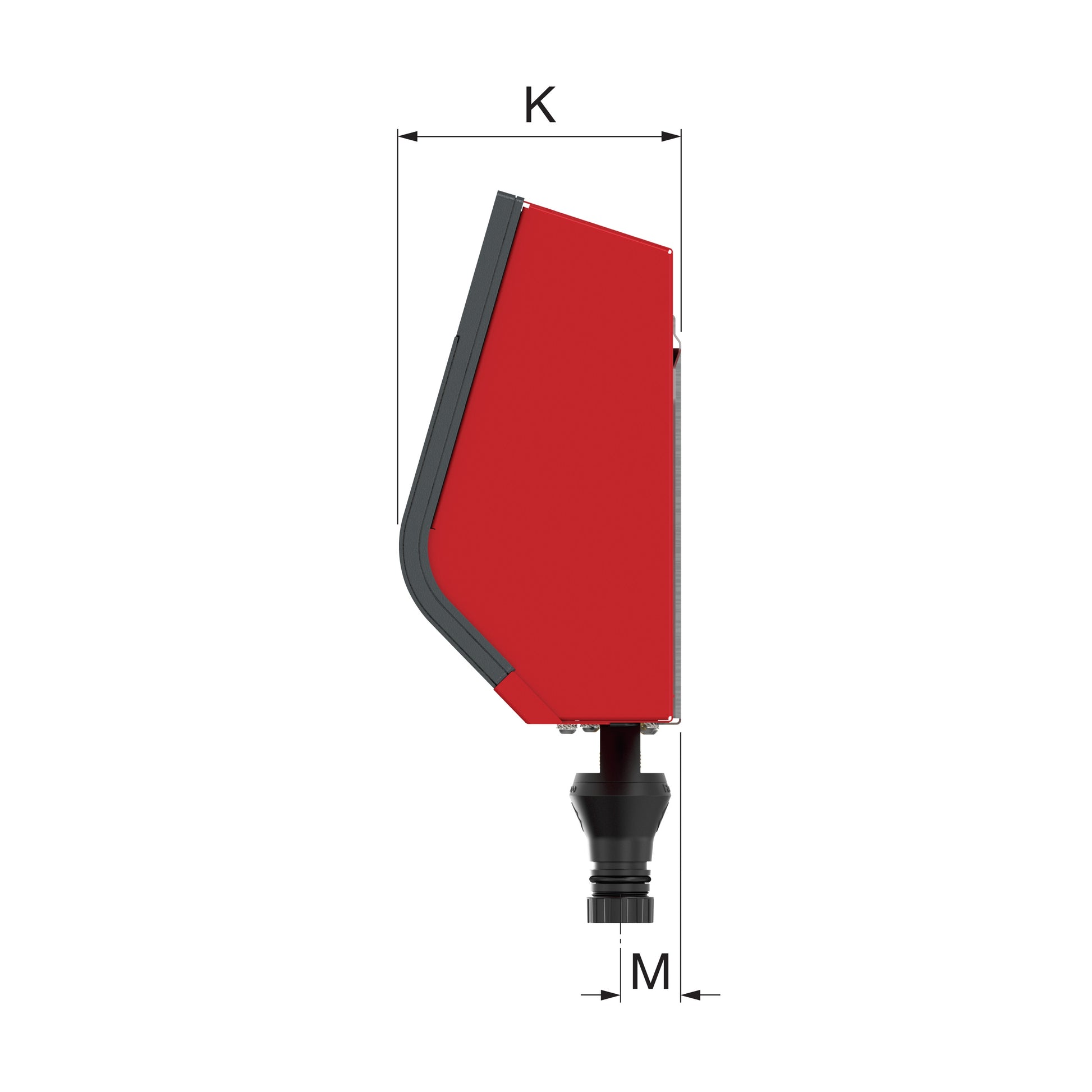

  • Type Dimensions
    A
    [mm]    		 B
    [mm]    		 B1
    [mm]    		 C
    [mm]    		 D
    [mm]    		 E
    [mm]    		 F
    [mm]    		 I
    ["]    		 J
    [mm]    		 K
    [mm]    		 M
    [mm]
    Flexfiller Direct G4 225 262 284 359 32 53 46 1/2" BSP 22 / 32 * 141 30
