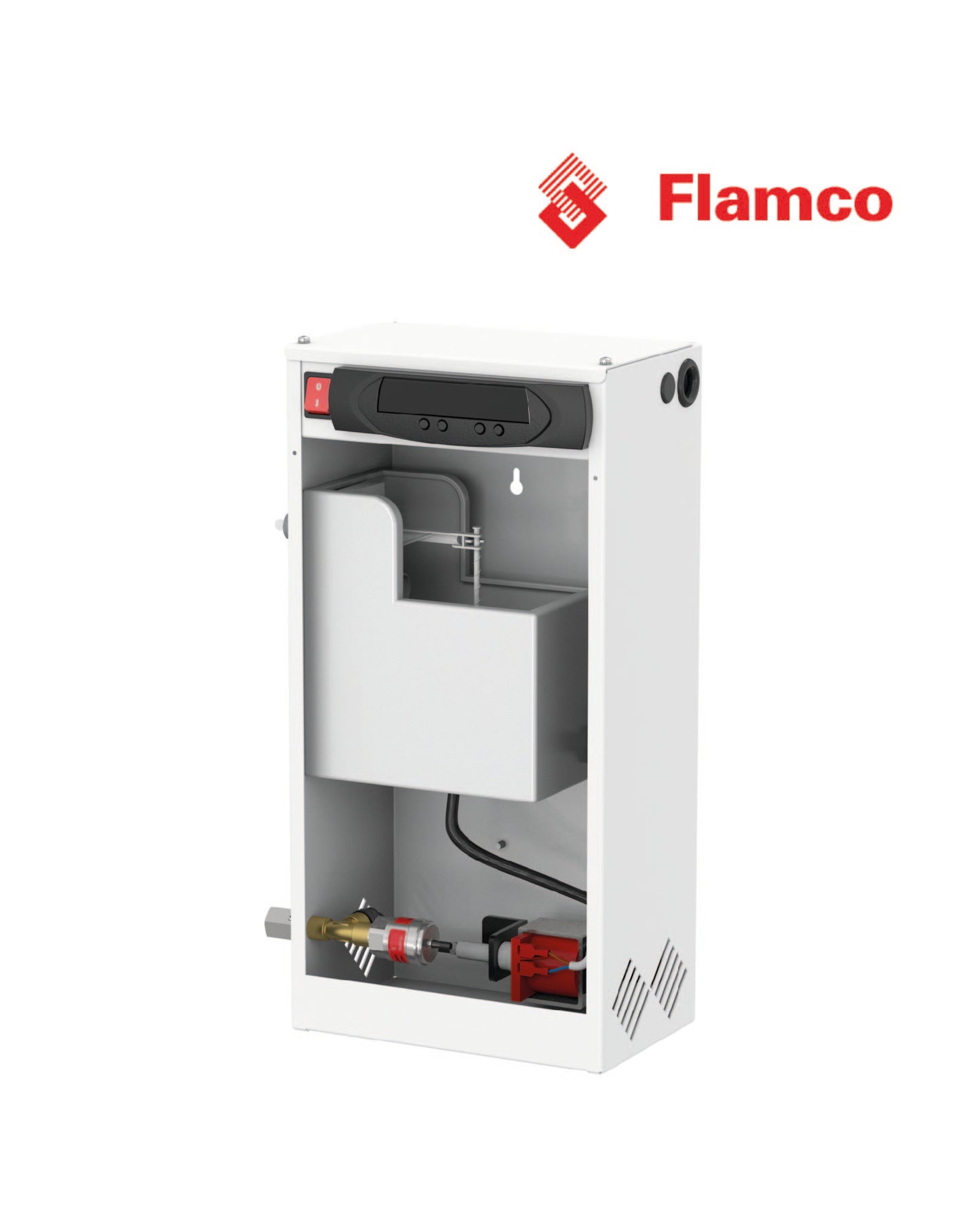

Flamco Flexfiller Mini 130D - 17455

The Flamco Flexfiller Mini 130D is a digital top-up pressurisation unit.

The Flamco Flexfiller Mini 130D is a compact wall mounted and free standing pressurisation unit. It is a low flow rate (0.4 l/min) top-up pressurisation unit with a 2 litre break tank. Ideal for large residential or small commercial application. For use on heating systems utilising a 300 litre expansion vessel or less, or chilled systems uitilising a 50 litre expansion vessel or less.

It is a fully automatic heating / chiller system topup device, offering accurate control and reliability. The Flexfiller Mini is suitable for pressure management in domestic, commercial and industrial sealed heating and cooling systems. It operates a single pumped system for topping up water using a break-tank and a digital controller. With AB type break tank for back flow protection.

Features:

• System volumes up to 2,600 litres
• MODBUS communication output.
• System quick fill mode.
• Event logging
• Volt free contacts
• Electric pump,. 230V 50Hz sinbgle phase.
• Single pump

Operating Conditions:
Maximum system temperature: 85 ºC.
Maximum ambient temperature: 40 ºC.
Relative humidity 95% non-condensing.
Noise Rating Data: < 75 dBA.

Attributes
Suitable for membrane pressure expansion tank
Suitable for compressor-controlled automatic expansion unit
Outer pipe diameter 1 return 21.3mm
Pressure 0.5 - 3 bar
Height 480mm
Width 210mm
Depth 150mm
